72 Mercer/501 Broadway, SoHo Historic District, NYC

how to design two completely different facades with maximum economy of elements

Location: 72 Mercer/501 Broadway, SoHo Historic District, New York City

Completion: 2009
Project Size: 7 Stories, 42,000 SF
Project Type: New Mixed Use Building Complex and Interior Design
Client: Charles Dunne Developer

72 MERCER/501 BROADWAY

This is TRA's inaugural new building and the first of the many projects that TRA completed in the SoHo Historic District. The sum rises at the urban scale becoming integral to the improvement of the larger fabric and neighborhood enhancing.

501 Broadway and 72 Mercer are two distinct buildings connected only at the ground floor. In 2000 when the design was first conceived, it was the second new project approved by the Landmarks Commission in SoHo. Its approval set a precedent for new zoning regulations, allowing for residential construction on vacant lots in the manufacturing district of SoHo. The site, 30 feet wide by 200 feet long, is located between Broadway and Mercer Streets in the SoHo Cast Iron District. The original 1870's building was destroyed by fire in the 1960’s.

The façades on the Broadway side were designed to be monumental, often constructed in stone, with a secondary utilitarian facade on the narrower and gritty Mercer Street.
The proposed 42,000 SF new mixed use complex with retail on the ground floor and loft apartments above, spans the entire lot between Broadway and Mercer Streets, with a courtyard in the middle.

The new building makes subtle references to the urban context. The geometry of both facades fits with the pattern of the surroundings, but at the same time the new building responds to the need to stand out as a contemporary statement.
Loft buildings and the spaces that are created, are by definition “pure rooms”, thus like in the old loft buildings, the architecture plays on the thickness of the building skin that encloses it. This thick skin is at once the connection to the past and a bridge to the present. It also creates a sense of privacy to buffer the interior space from the street. In the proposed design the depth of the window wall assembly is created by the movement of the spandrel panel inward.

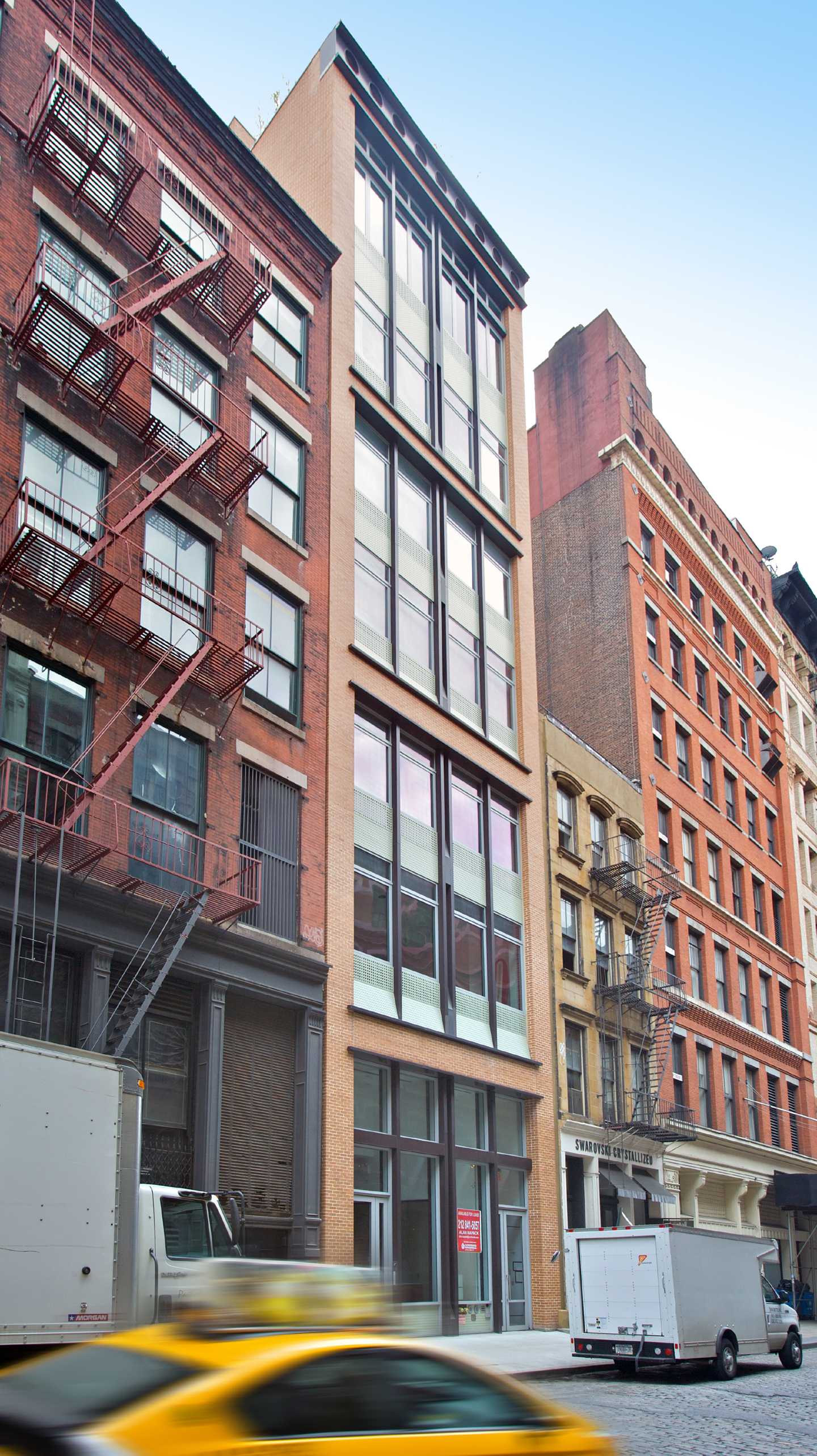

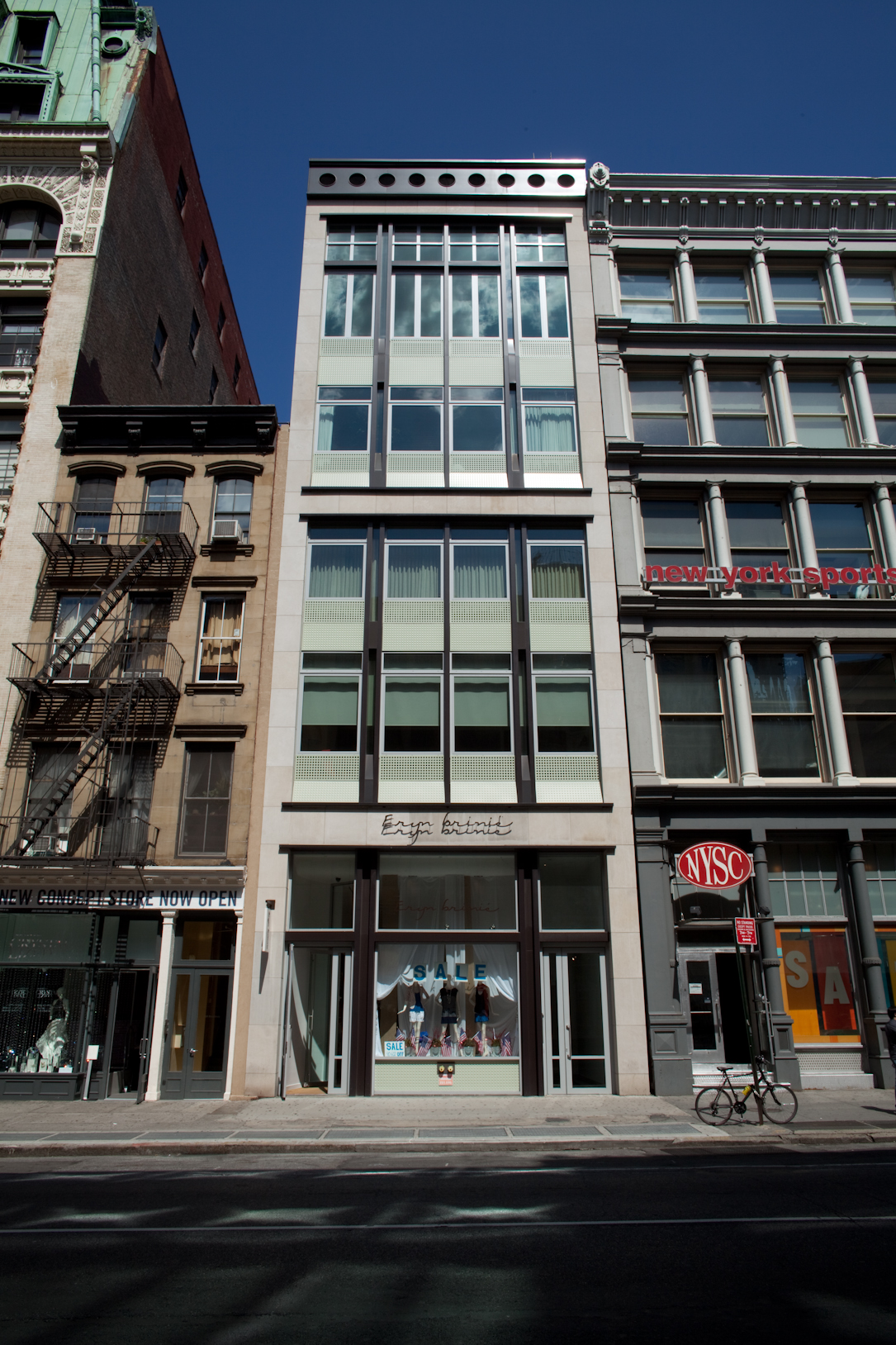

As seen in the surrounding cast-iron loft buildings, very few pre-fabricated elements are utilized in order to create two similar but different facades. The Broadway building facade is five stories and is organized around a central set of windows while on the Mercer Street building, which is seven stories tall, the façade is organized around a central pilaster. Both facades utilize one pilaster and one window design, similarly to the original cast-iron catalogues.

THE RESIDENCES

The interior is designed and built with the same care as the exterior. Like the facade finds balance between the architecture of the surrounding buildings and the contemporary insertion, similarly the interior builds on all the attributes that make the old loft apartments desirable, within a modern, efficient interior.

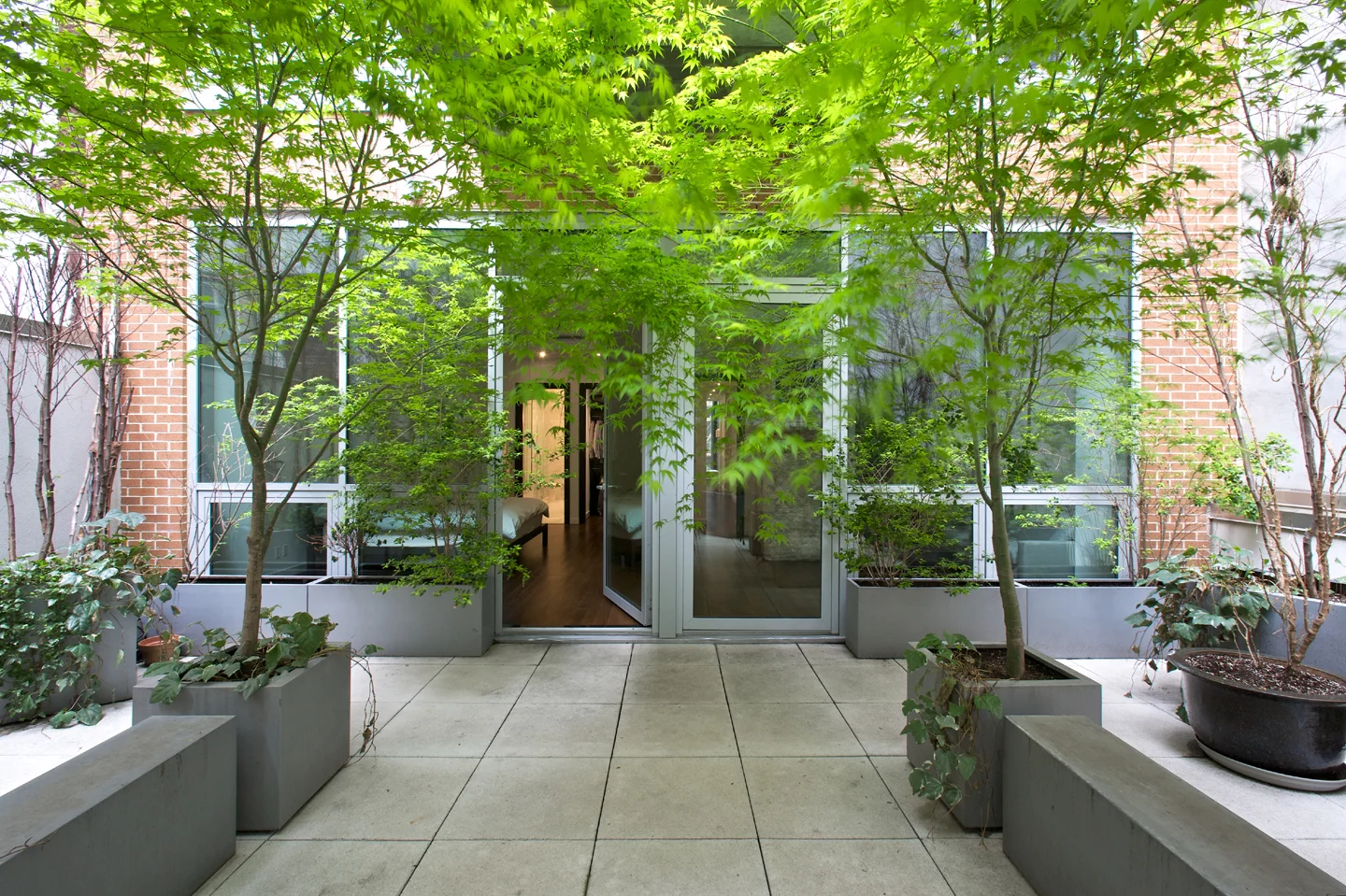

The Broadway and Mercer curtain walls, as in all of TRA's new buildings, is the main architectural element, both on the outside as well as from the inside, the feature perforated bulkhead panel allows screens the light providing a sense of privacy. The two rear facades, which have been designed with the same attention to detail of the main facades, line a private treed court.

TRA studio was responsible for the interior architecture of the apartments, including all finishes, lighting, kitchen, bathrooms and built-in cabinetry, (furniture selection by owners).

THE CATALYTIC EFFECT: THE DOWNTOWN PROJECTS

The studio’s numerous projects in Downtown Manhattan have all played a spin off role in enhancing their respective neighborhoods and all have given back with overarching citywide importance, each intervention adding to a catalytic reaction at urban scale.

The numerous interventions along Mercer Street, and more recently in the Tribeca area South of Canal, contributed to the “making of the street”, acting as anchors in the commercial SoHo District and the lower Broadway corridor.
